Quick Change - Broaching Tools - Metric Keyway
Internal Diameter (ID) - Quick Change
Micro 100's QBRKM, offering of Metric Keyway Broaching tools for DIN standards, is optimized for use with the proprietary Micro-Quik quick change system to maximize productivity through reliable accuracy and locational repeatability.
- Designed for multiple pass static broaching of metric internal and external keyways
- Available in tolerance grades P9, JS9 (DIN 6885), and C11 (DIN 138)
- Coolant fed enabled shank design
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- nACRo® coating option for added heat resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Advanced Search

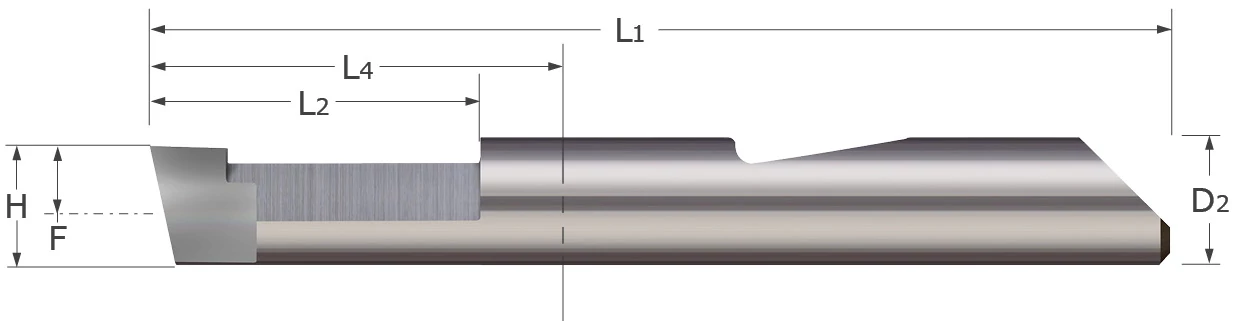

| Tolerance Grade | Broach Width | Minimum Bore Dia.* | Max Broach Depth | Corner Radius | Max Radial Engagement | Broach Height | Centerline Offset | Length From Holder | Shank Diameter | Overall Length | Uncoated | nACRo® Coated | Add to Cart | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm equiv | W +.0000"/-.0010" | Dmin | L2 +.030"-.000" | R +.001"/-.001" | T1 | H | L4 | F | D2 (h6) | L1 | Tool # | Price | Tool # | Price | ||
*Minimum Bore Diameter is for reference only. Please refer to workpiece specifications or standard bore sizes for proper bore sizing.
